Power Control & Distribution Panels

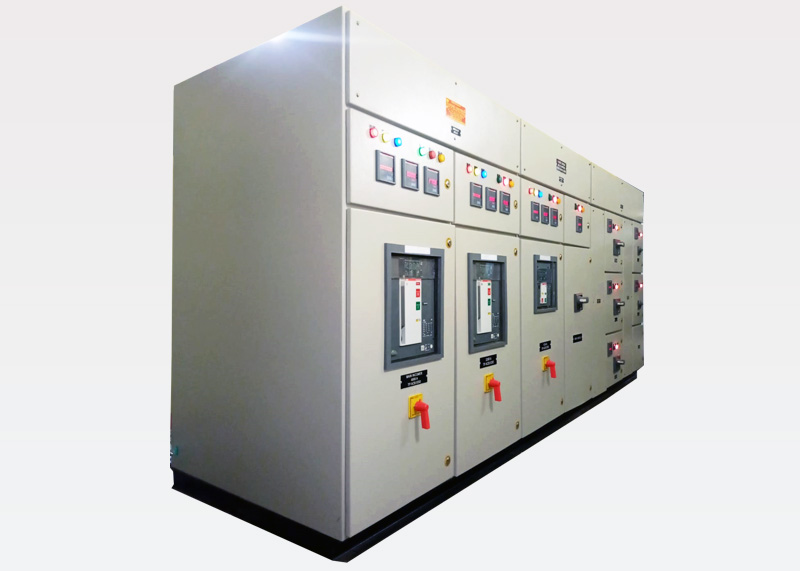

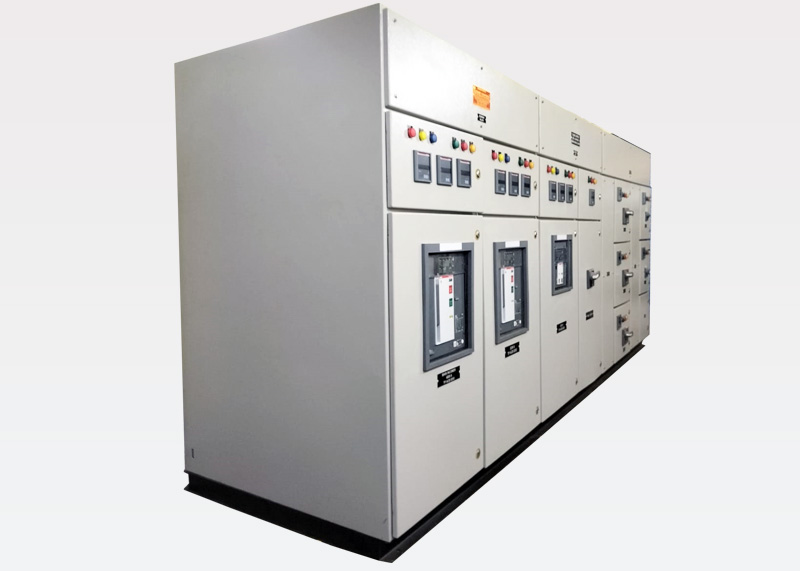

IEC 61439 approved Power Control Center builder upto 4000 Amps with 3 B formation and back operational.
The power control center (PCC) serves as a power distribution board for regulating the supply of power to motors, panels, and transformers. Our team of skilled professionals meticulously manufactures these centers in accordance with the IEC 61439 standard, ensuring the use of high-quality materials and components. Furthermore, we tailor-make our power control centers to meet the specific needs and preferences of our clients.
The Power Control Center features a panel that is divided into compartments and can handle currents of up to 4000 Amp. The Power Control Center serves as a centralized control panel with various vertical sections for monitoring and controlling different electric parameters. This range of Power Control Centers excels in managing high current at low voltage.
The power control center's bus bar system is engineered to withstand fault levels and temperature increases of up to 40 degrees Celsius. The cable terminations are designed with ample space allocation. Diverse protective measures such as short circuit prevention, overload protection, earth fault detection, under voltage safeguards, etc., are employed to safeguard the source and equipment.
A power control center panel is responsible for monitoring and regulating the voltage and power of a power system. These PCC panels are not only crafted from top-notch raw materials but also boast an exceptionally sturdy construction. The main power instrument panel includes feeder breakers, provide breakers, monitoring devices, and control devices. To ensure quality assurance at every step of production, a respected manufacturer of PCC panels meticulously analyzes all field data pertaining to electrical power panels. The power control center panels are constructed using 14 16 SWG CRCA material, which is strong and well-supported. This ensures that the panels have the desired breaking capacity, temperature rise, and IP protection. Furthermore, there is plenty of space available for terminating incoming and outgoing cables. According to IEC 61439 standards, the outgoing terminals are designed in a stud type configuration.
Advantages of power control centre
- PCC panels are safe, compact and reliable
- Power control centre is easy to operate
- Power Control Center equipped with both single and multiple incomers, bus couplers, and effective interlocking on the primary LT panel.
- The power control centre ensures the necessary safeguards such as the required protection, fault indications, and interlocking.
- The power control center comes in different designs, including horizontal bus chambers at the top, middle, and bottom, panels with aluminum copper bus bars, cable terminations at the top, bottom, front, and rear, and combinations with APFC Parts.
- In the event of a power failure, ensure that DGIncomer with AMF functions are available and disconnect non-essential feeders.
- A power control centre is equipped with a panel on the main incomer side, which includes a provision for connecting the bus duct.
