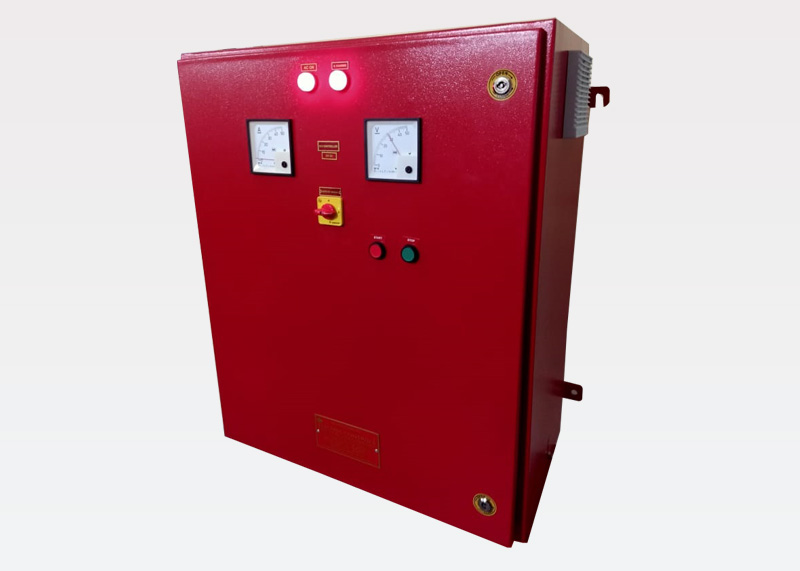

Heavy Duty Diesel Engine Control Panels
Controlling and safeguarding the diesel engine is the primary role of diesel engine control panels. The control panel consists of a set of integrated components that oversee the diesel engine parameter readings to ensure they remain within safe levels. The diesel engine control panel functions through the coordinated action of the following components.
The Diesel Controller Unit
Similar to CPU of a computer, the control module serves as the brain of your panel. This device utilizes a microprocessor controller and adjusts the circuitry of the panel according to varying conditions or adjustments in diesel engine parameters.
The Terminal Rail
This is the junction of all the wires and connectors coming from the engine and the alternator. The purpose of these wires is to create a two-way connection between the engine and the control panel. Inputs on the control panel reach the engine and alternator while changing parameters in the engine and alternator are relayed to the panel.
Battery Charger
The control panel contains individual battery chargers that are fully automatic and microprocessor-controlled, with a rating of 10 Amps. The battery chargers operate in such a manner as to ensure that the engine batteries are fully charged within 24 hours. PCB-mounted LEDs are available to indicate the status of AC Power and Battery Power.
Circuit Breaker
Similar to numerous other electrical and electronic devices, the circuit breaker serves the purpose of halting the current in the event of overload or short-circuits. This mechanism is of utmost importance in safeguarding your diesel engine against unexpected surges in electricity.
The diesel engine control panel serves as an efficient device for monitoring and managing your generator. Nowadays, the panels are equipped with advanced LCD screens, displays indicating running time, oil pressure and temperature sensors, remote start or stop functions, and an emergency shut-down lever. If you have specific needs, you can request a customized control panel to be assembled according to your specifications.
Product Features
- Sturdy construction
- Compartmentalized designs
- Durable
